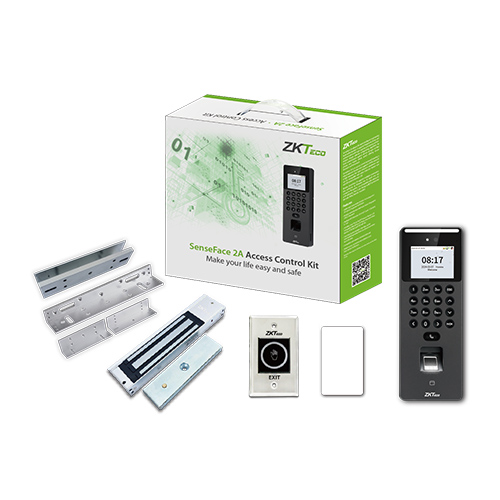

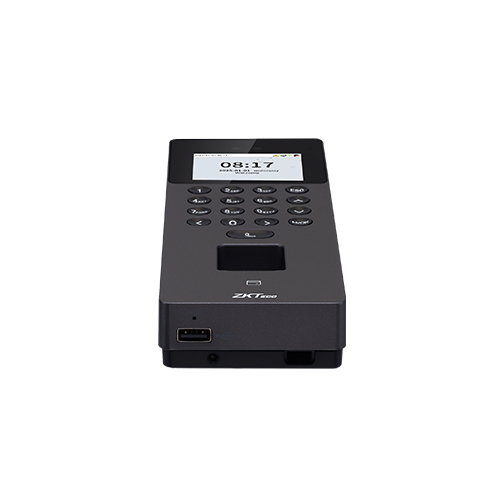

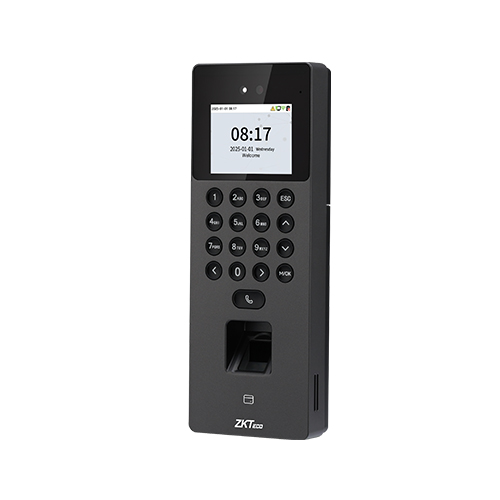

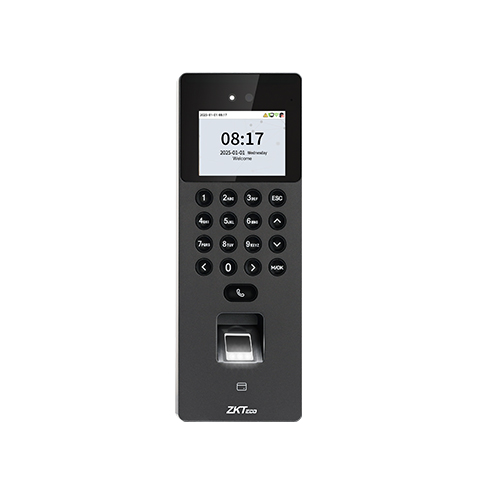

SenseFace 2A

Model

SenseFace 2A

Display

2.4"@ TFT Color LCD Screen (320*240)

Camera

WDR Binocular Camera @ 1MP

Operation System

Linux

Hardware

CPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32
dB/Impedance: 2.2kΩ)
Supplement Light: Yes
Physical Keypad: 17 Keys
Fingerprint Sensor: ZK Optical Sensor

Authentication Method

Fingerprint / Face / Card / Password (Physical Keypad)

Fingerprint Template Capacity

3,000 (1:N) (Standard)

Face Template Capacity

1,500 (1:N) (Standard)

Card Capacity

3,000 (1:N) (Standard)

User Capacity

3,000 (1:N) (Standard)

Transaction Capacity

150,000 (1:N)

Max. User Password Length

8 Digits

Biometric Verification Speed

less than 0.5 sec (Fingerprint)
less than 0.35 sec (Facial Authentication)

Touchless Biometric Recognition Distance

30cm to 200cm (Facial Authentication)

False Acceptance Rate (FAR) %

FAR ≤ 0.01% (Visible Light Facial Authentication)
FAR ≤ 0.0001% (Fingerprint)

False Rejection Rate (FRR) %

FRR ≤ 0.02% (Visible Light Facial Authentication)
FRR ≤ 0.01% (Fingerprint)

Biometric Algorithm

ZKFace V4.0
ZKFingerprint V13.0 (Standard) /V10.0 (Optional)

Card Type

ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)

Communication

TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
USB: Type A (USB Drive Only )*1
Electric Lock*1, Door Sensor*1, Exit Button*1

Standard Functions

ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)

Optional Functions

IC Card, Wi-Fi, Wireless Doorbell

Power Supply

DC 12V 1.5A

Video Intercom

Video Intercom (ZKTeco Private Protocol via TCP/lP)
Support Devices: Standalone Terminal: SenseFace Series;Indoor Monitor: VT07-B01, VT07-B01-W

Video Intercom (Standard SIP Protocol)
Support Devices: Standalone Terminal: SenseFace series; Indoor Monitor: VT07-B22L, VT07-B26L-W; Software: ZKBio CVAccess, BioTalk Pro; Mobile App: ZKBio Zlink, ZKBio Zexus

Operating Temperature

-5°C to 45°C

Operating Humidity

20% to 80% RH (Non-condensing)

Dimensions

205.20 mm*74.19 mm*33.30 mm (L*W*H)

Net Weight

0.258 Kg

Supported Software

On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH)
Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App)

Installation

Wall-mount (Compatible with Asian Gang Box / Single Gang Box)

Certifications

ISO14001, ISO9001,CE, FCC, RoHS
