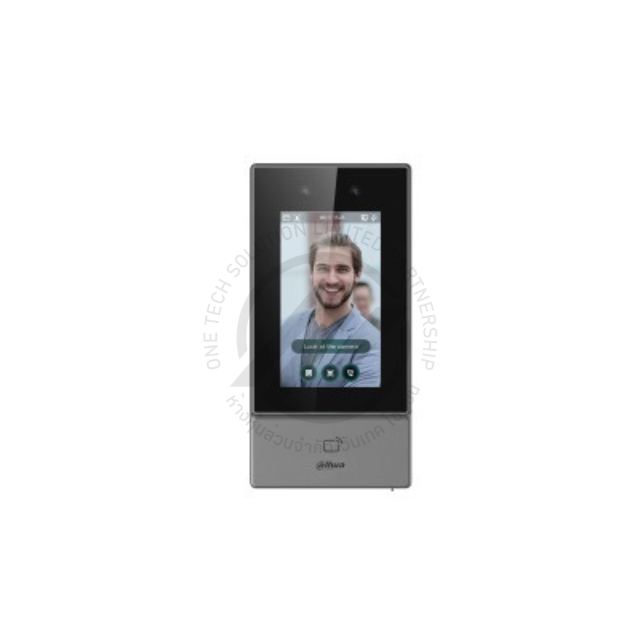

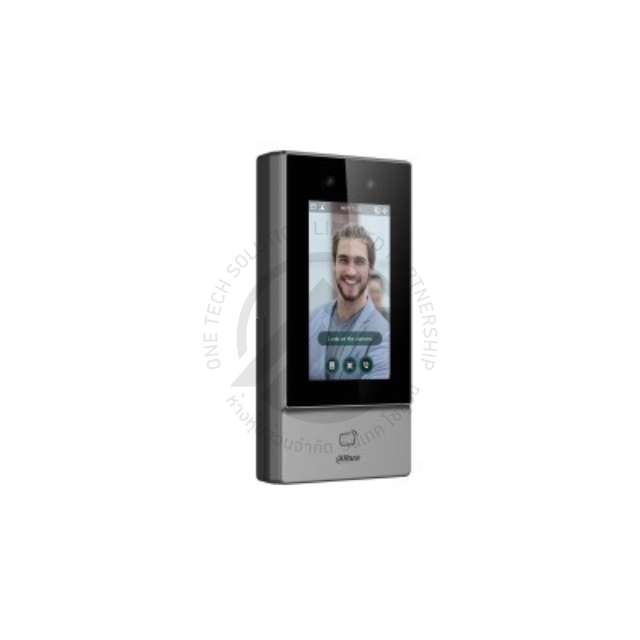

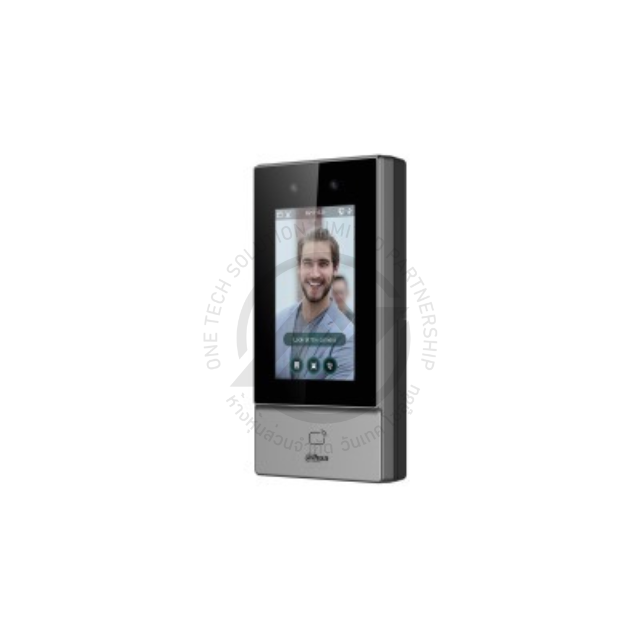

ASI6213S-PW-V1

System

Main Processor

Embedded Processor

Button Type

Touch button

Network Protocol

IPv4;RTSP;UDP;P2P;RTP;TCP;SIP

OSDP Protocol

Yes

Interoperability

ONVIF;CGI

SDK and API

Yes

Basic

Product Type

Standalone

Display Screen

4.3-inch display screen

Screen Type

Capacitive Touchscreen

Screen Resolution

480 (H) × 800 (V)

Camera

2-MP CMOS HD dual-lens camera

WDR

DWDR

Light Compensation

Auto IR

Voice Prompt

Yes

Speaker

Yes

Casing Material

PC + GF

Function

Verification Method

Card;Password;Remote;QR Code;Face Recognition

Door Open Notification Mode

Quick mode;Simple mode;Standard mode;Comparison mode

Period List

128 periods

Holiday Period

128 periods

Network Update

Yes

First User Unlock

Yes

Remote Verification

Yes

Restricted List/Trusted List

Yes

Advertisement Playing

Plays advertisements in video and image format

Peripheral Card Reader

1 × RS-485 card reader

1 × Wiegand card reader

Multi-user Authentication

Yes

Real-time Monitoring

Yes

Multi-factor Authentication

Yes

Capture Function

Yes

Web Configuration

Yes

Auto Registration

Yes

RFID

Card Type

IC card;Desfire card (EV3,Compatible with Dahua card by default)

Frequency Range

13.56MHz

Network

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Max. Transmission Power

≤20dBm@2400-2483.5 MHz

Performance

Card Reading Distance

0 cm–3 cm (0"–1.18")

Face Recognition Height Range

1.1 m–2.0 m (3.61 ft–6.56 ft)

Face Recognition Distance

0.3 m–1.5 m (0.98 ft–4.92 ft)

Face Recognition Accuracy

99.9%

Face Recognition Time

0.2s

User

User (Card) Type

Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2

Capacity

Face Image Capacity

6,000

User Capacity

6,000

Card Capacity

10000

Password Capacity

6000

Record Capacity

300000

Port

RS-485

1

Wiegand

1

USB

1

Network Port

1 × RJ-45 10/100 Mbps self-adaptive Ethernet port

Alarm Input

1

Alarm Output

1

Alarm Linkage

Yes

Exit Button

1

Door Status Detection

1

Lock Control

1

Power Output Port

1

Alarm

Anti-pass Back

Yes

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

General

Power Adapter

Included

Power Supply

Stanard PoE

12 VDC, 2 A

Protection

IP65

Power Consumption

≤24W

Product Dimensions

180.1 mm × 90.1 mm × 27.0 mm (7.09" × 3.55" × 1.06") (L × W × H)

Packaging Dimensions

268 mm × 136 mm × 78 mm (10.55" × 5.35" × 3.07") (L × W × H, in an inner carton)

590 mm × 432 mm × 302 mm (23.23" × 17.01" × 11.89") (L × W × H, protection box)

Transport Package Dimensions

590 mm × 432 mm × 302 mm (23.23" × 17.01" × 11.89") (L × W × H, protection box)

Operating Temperature

–30 °C to +45 °C (–22 °F to +113 °F)

Operating Humidity

0%–90% (RH), non-condensing

Operating Altitude

0 m–1,300 m (0 ft–4265.09 ft)

Operating Environment

Indoor;Outdoor

Gross Weight

0.70 kg (1.54 lb)

Accessory

Wall mount bracket (included)

Installation

Wall Mount;Surface Mount;Desk Mount;Turnstile Mount;86 mm Junction Box Mount

Storage Temperature

–20 °C to +70 °C (-4 °F to +158 °F)

Storage Humidity

30%–75%
